Rubber Expansion Joint

Overview
Q-Flex’s bellow rubber expansion joints can be used for both suction and delivery (discharge) due to its excellent stability and pressure with stand ability. Its bursting pressure is anytime above 550psi and can be comfortably used within a normal internal pressure of 225psi.

The unique spherical shape of the connectors with its excellent indigenous structural design combined with its internally laid tough flexible fibers and lastly its molding technique has much contributed to its success in the ability to withstand the force of creating a vacuum on both the delivery and the suction mode of applications. Since its carcass is of spherical design, the rubber joint will not come into contact with the connecting bolts head even if it expands, thus ensuring security and reliability in use when subjected to extremely high pressure.

QF10

Rubber Bellow Expansion / Flexible Joints (10 Bar)

DESCRIPTION OUR REF.
QF10 RUBBER FLEXIBLE JOINTS TABLE E QF10TE
QF10 RUBBER FLEXIBLE JOINTS JIS10K QF1010K
QF10 RUBBER FLEXIBLE JOINTS ANSI150 QF10150
QF10 RUBBER FLEXIBLE JOINTS PN16 QF10P16

QFSC
Single Bellow Expansion / Flexible Joints


Working Pressure: 10KG/CM2 (150PSI)
Max. Temperature: 80 Deg C

DESCRIPTION OUR REF.
Q-FLEX (SINGLE BELLOW) FLEXIBLE RUBBER EXPANSION JOINT F/E BS10 TABLE ‘E’ QFB01S
Q-FLEX (SINGLE BELLOW) FLEXIBLE RUBBER EXPANSION JOINT F/E TABLE ‘E’ WITH TIE ROD QFP16T
Q-FLEX (SINGLE BELLOW) FLEXIBLE RUBBER EXPANSION JOINT F/E ANSI150 QF150S
Q-FLEX (SINGLE BELLOW) FLEXIBLE RUBBER EXPANSION JOINT F/E JIS10K QF10KS
Q-FLEX (SINGLE BELLOW) FLEXIBLE RUBBER EXPANSION JOINT F/E PN10 QFP10S
Q-FLEX (SINGLE BELLOW) FLEXIBLE RUBBER EXPANSION JOINT F/E PN16 QFP16S
Q-FLEX (SINGLE BELLOW) FLEXIBLE RUBBER EXPANSION JOINT F/E PN16 WITH TIE ROD QFP16ST
Q-FLEX (SINGLE BELLOW) FLEXIBLE RUBBER EXPANSION JOINT F/E 300PSI (8″- 200MM) QFB02S

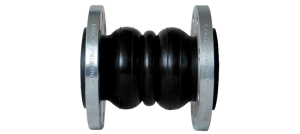

QFTC

Double Bellow Expansion / Flexible Joints


Working Pressure: 10KG/CM2 (150PSI)
Max. Temperature: 80 Deg C

DESCRIPTION OUR REF.
Q-FLEX (DOUBLE BELLOW) FLEXIBLE RUBBER EXPANSION JOINT F/E BS10 TABLE ‘E’ QFB01D
Q-FLEX (DOUBLE BELLOW) FLEXIBLE RUBBER EXPANSION JOINT F/E ANSI150 QF150D
Q-FLEX (DOUBLE BELLOW) FLEXIBLE RUBBER EXPANSION JOINT F/E JIS10K QF10KD
Q-FLEX (DOUBLE BELLOW) FLEXIBLE RUBBER EXPANSION JOINT F/E PN10 QFP10D
Q-FLEX (DOUBLE BELLOW) FLEXIBLE RUBBER EXPANSION JOINT F/E PN16 QFP16D

QFTU

Twin Union Flexible Joint


Working Pressure: 10KG/CM2 (150PSI)
Max. Temperature: 10KG/CM2 at 80 Deg C

DESCRIPTION OUR REF.
Q-FLEX FLEXIBLE RUBBER EXPANSION JOINT WITH BSPT UNION END (SCREW END) QFSIS

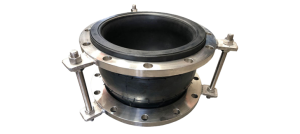

QFSC & QFTC

Tie Rod Version

Product description:

Item Part Material
1 Flange * Mild Steel
2 Wire Hard Steel Wire
3 Body ** Heat Resisting Rubber
4 Body Nylon

Others

DESCRIPTION OUR REF.
E-SHAPE SILICON RED RUBBER LINING TZV01R
