GAS

One Stage

RDBS

The Riello RDBS is a series of one stage gas burners with integrated gas train, characterised by its small dimensions in spite of its high combustion performance. It is available in conventional flue and balanced flue versions. It has been developed to respond to any request for home heating, conforming to current regulations in force. The RDBS series is available in two models with an output range from 16 to 48 kW; the difference between the two models are the gas train and the combustion head. The RDBS1 model is made up of a class A gas train and a standard flame combustion head, the RDBS0.1 model is made up of a class B gas train and a short flame combustion head. The RDBS burners are fitted with a microprocessor based control box with diagnostic functions. These models use the same components designed by Riello for RDB series. The high quality level guarantees safe working. In developing these burners, special attention was paid to reducing noise, he ease of installation and adjustment, to obtaining the smallest size possible to fi t into any sort of boiler available on the market. These models are approved by the EN 676 European Standard and European Directives, Gas Appliance, EMC, Low Voltage, Boiler Efficiency The RDBS burners are tested before leaving the factory

  • RDBS0.1
  • RDBS1

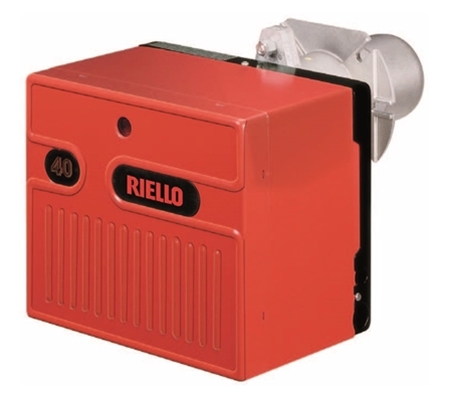

Riello 40 GS

The Riello 40 GS series of one stage gas burners, is a complete range of products developed to respond to any request for home heating. The Riello 40 GS series is available in four different models, with an output ranging from 11 to 220 kW, divided in four different structures. All the models use the same components designed by Riello. The high quality level guarantees safe working. The Riello 40 GS burners are fitted with a microprocessor based control box with diagnostic functions. In developing these burners, special attention was paid to reducing noise, to the ease of installation and adjustment, to obtaining the smallest size possible to fit into any sort of boiler available on the market. All the models are approved by the EN 676 European Standard and conform to European Directives for EMC, Low Voltage, Machinery and Boiler Efficiency. All the Riello 40 GS burners are tested before leaving the factory.

  • RIELLO 40 GS 3
  • RIELLO 40 GS 5
  • RIELLO 40 GS 10
  • RIELLO 40 GS 20

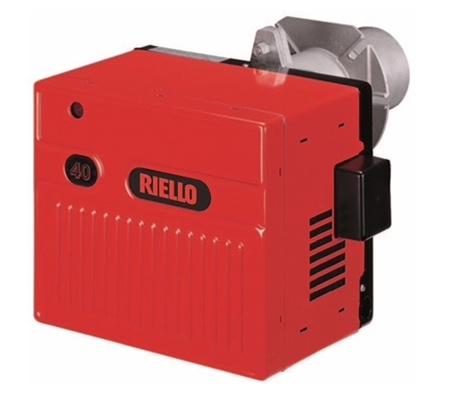

Riello 40 FS

The Riello 40 FS series of one stage gas burners, is a complete range of products developed to respond to any request for light industrial application. The Riello 40 FS series is available in five different models, with an output ranging from 11 to 220 kW, divided in four different structures. All the models use the same components designed by Riello for the Riello 40 FS series. The high quality level guarantees safe working. The Riello 40 FS burners are fi tted with a microprocessor - based control box, with diagnostic functions. In developing these burners, special attention was paid to reducing noise, to the ease of installation and adjustment, to obtaining the smallest size possible to fit into any sort of boiler available on the market. All the models are approved by the EN 676 European Standard and conform to European Directives for EMC, Low Voltage, Machinery and Boiler Efficiency. All the Riello 40 FS burners are tested before leaving the factory.

  • RIELLO 40 FS3
  • RIELLO 40 FS5
  • RIELLO 40 FS8
  • RIELLO 40 FS10
  • RIELLO 40 FS15
  • RIELLO 40 FS20
Gulliver RS

The Riello Gulliver RS5 is a new model of the series of one stage gas burners, characterized for its small dimensions in spite of its high combustion performance. It has been developed to respond to any request for home heating, conforming to current regulations in force. This model uses the same components designed by Riello for the Gulliver series. The high quality level guarantees safe working. The burners are fi tted with a microprocessor-based burner safety control box which supplies indication of operation and diagnosis of fault cause. In developing this burner, special attention was paid to reducing noise, the ease of installation and adjustment, to obtaining the smallest size possible to fit into any sort of boiler available on the market. This model is approved by the EN 676 European Standard and European Directives, Gas Appliance, EMC, Low Voltage, Boiler Efficiency. The Gulliver RS5 burner is tested before leaving the factory.

  • GULLIVER RS5
  • GULLIVER RS5F

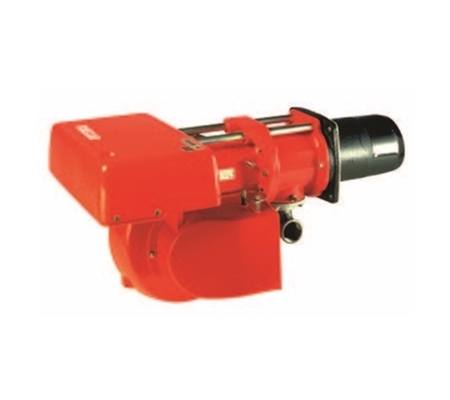

Gas

The GAS series of burners cover a firing range from 130 to 1050 kW. Operation is “one stage”; the combustion head, that can be set on the basis of required output, allows optimal performance ensuring good combustion and reducing fuel consumption. The GAS series are extremely reliable burners, featured by a simple use and an operation without particular maintenance intervention. Simplified maintenance is achieved by the slide bar system, which allows easy access to all of the essential components of the combustion head. All electrical components are easily accessible only by dismounting a protection panel, thus guaranteeing a quick and simple intervention on components.

  • GAS 3
  • GAS 4
  • GAS 5
  • GAS 5

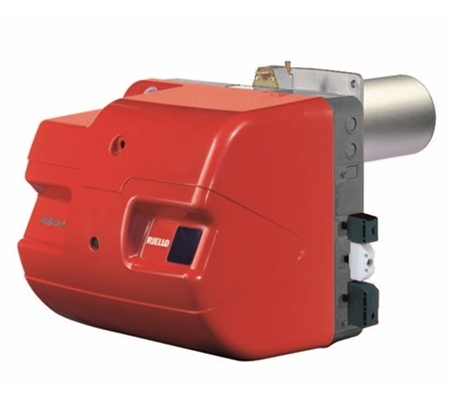

RS/1

The RS/1 series of burners covers a firing range from 70 to 550 kW, and they have been designed for use in low or medium temperature hot water boilers, hot air or steam boilers, diathermic oil boilers. Operation is “one stage”; the burners are fitted with a microprocessor-based burner safety control box which supplies indication of operation and diagnosis of fault cause. Optimisation of sound emissions is guaranteed by the special design of the air suction circuit. The elevated performance of the fans and combustion head, guarantee flexibility of use and excellent working at all firing rates. The exclusive design ensures reduced dimensions, simple use and maintenance. Optimisation of sound emissions is guaranteed by the special design of the air suction circuit and by incorporated sound proofing material. A wide range of accessories guarantees elevated working flexibility.

  • RS34/1 MZ
  • RS44/1 MZ
