Arita Brand
Control Valve
Arita Control Valve adopts a compact valve body, having an S-shape smooth flow passage that features low-pressure loss, reliable control, and high accuracy flow characteristics. There are several types of control valve featuring Single Seated, Cage Guided, Bellow Seal, etc. Each designed specifically for different application of different service condition.
A control system is a device or set of devices, that manages, commands directs or regulates the behavior of other devices or system(s). Normally electric or pneumatic actuator systems are used in industrial production system.

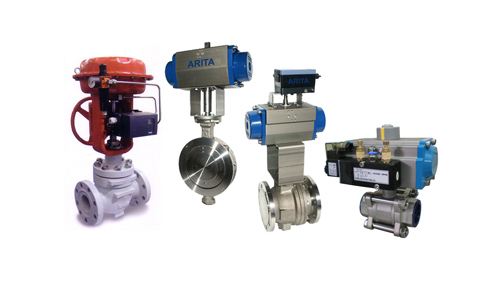

Left: Single Seated Control Valve Right: Cage Guided Control Valve
| REFERENCE : | |
| Size | 1/2″ – 12″ |
| Rating | ANSI 150 to 2500 |
| Body Material | Carbon Steel, Stainless Steel |
| Trim | 13Cr, 304, 316, 304L, 316L, Stellite |
| Operation | Actuator |
| Connection | Flange |
Lined Ball Valve
| REFERENCE : | |
| Size | 1/2″ – 16″ |
| Rating | ANSI 150 to 300 |
| Body Material | Carbon Steel, Stainless Steel |
| Operation | Manual, Actuator |
| Connection | Flange, Weld |
| Design Standard | BS 5351, MSS SP-110, ASME B16.34 |
| Testing | API 598 |
| Mounting Option | ISO 5211 |
| Lining Option | Teflon or Rubber material |
PTFE Lined Butterfly Valve
| REFERENCE : | |
| Size | 2″ – 48″ |
| Rating | ANSI 150 to 600 |
| Body Material | Carbon Steel, Stainless Steel |
| Trim | WCB, CF8, CF8M, CF3, CF3M |
| Operation | Manual, Actuator |
| Connection | Flange, Wafer, Lug, Weld |
| Design Standard | BS 5155, ASME 16.34, MSS SP-68 |
| Testing | API 598 |
| Mounting Option | ISO 5211 |
| Lining Option | Teflon or Rubber material |
V Type Ball Valve
| REFERENCE : | |
| Size | 1/2″ – 12″ |
| Rating | ANSI 150 to 300 |
| Body Material | Carbon Steel, Stainless Steel |
| Trim | A105+ENP, 13Cr, F304, F316, F304L, F316L |
| Operation | Manual, Actuator |
| Connection | Flange, Weld |
| Design Standard | MSS SP-110, ASME B16.34 |
| Testing | API 598, Fire Test API 607 |
| Mounting Option | ISO 5211 |
Please contact us directly on +603 77835688 or alternatively send your inquiry through using the form below.
